Document for Fresh Agent Install & Clone
Agent Install Method
Below are the
servers which we have installed the agent with above two methods.
Method 1:
Steps for Fresh Agent Install:
Pre-Checks: (Need to perform all the nodes if
it is multiple OMS)
1. Verify the following commands from agent
server:
$nslookup <OMS
hostname>
$ping <OMS
hostname>
$telnet <OMS
hostname> <upload port number> ( port# is agent upload port) ex: 3872
$wget
--no-check-certificate https:// <OMS hostname>:4900/empbs/upload
2. Verify the following commands from OMS server:
$nslookup <Agent
hostname>
$ping <Agent
hostname>
$telnet <Agent
hostname> port 22
If any of the above
commands fail then this is most likely a network issue and needs network or
sysadmin to troubleshoot.
Agent Deployment Steps Below:
3. In Cloud Control, from the Setup
menu, select Add Target, and then click Add Target Manually

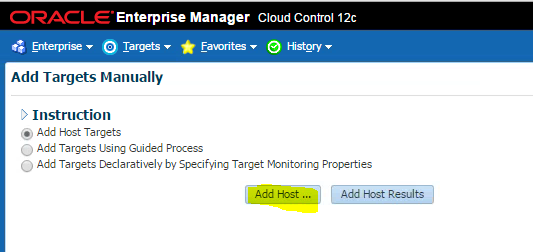

4. On Next Window select Add Host
Target and click Add Host.
5. On Next Window Add the Hostname
and add the platform name where u are going to install the agent. And click
Next
6. Create the Directory for Agent Base in the
server level.
7. On Next Window give inputs for
the installation base directory, installation directory, credentials and leave
the sudo and port details as it is (default value) and click Next.

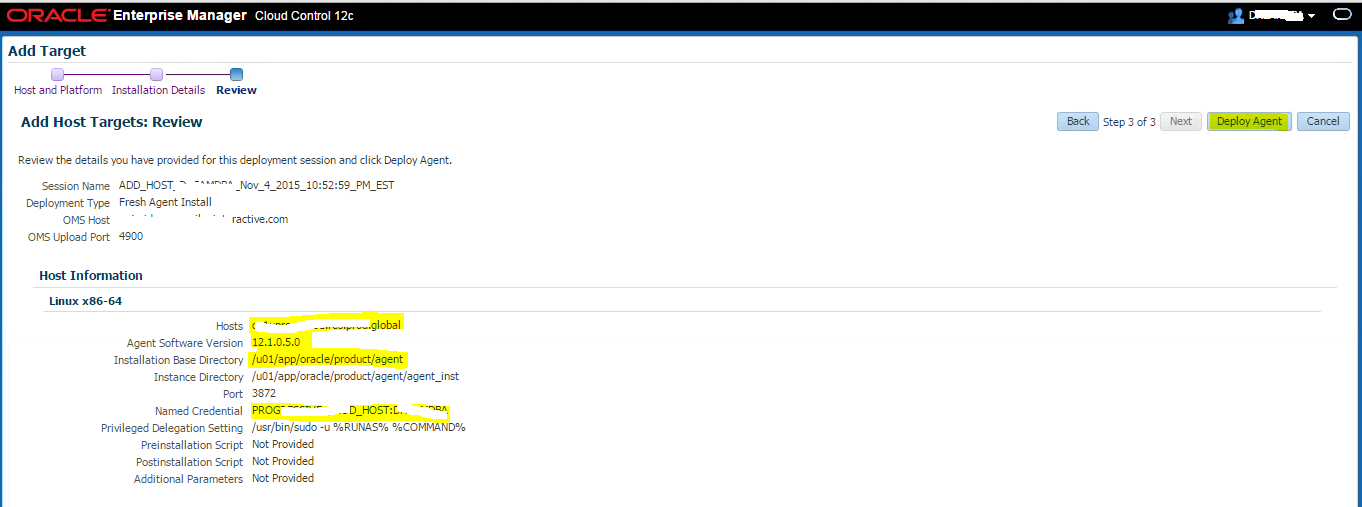

8. On Next Window review the details
which we have entered and proceed for the Deploy agent.
9. On Next Window you can see the
Installation Progress and pre-checks
10.
On Next Window you can see the further steps on the agent
installation.
11.
On Next Window click the continue for all hosts as highlighted and
ignore the root.sh warnings it need to take care by manually.
12.
On Next Window We can see the Agent Deployment completed
successfully and click done and run the root.sh script manually in the server.
13.
We have to run the root.sh script as root user as below to
complete the agent installation.
14.
We can cross check the agent through OEM and server level as per
below screen shots.
15.

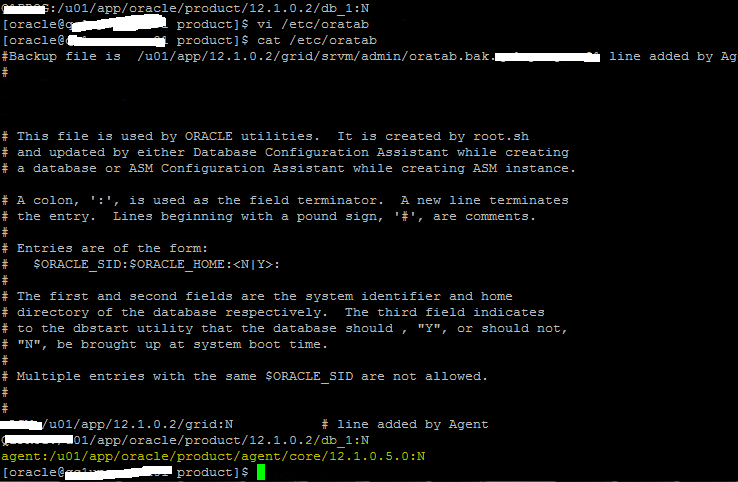

Add the oratab entry for the agent with oracle home
Method 2:
Steps for Clone Agent Install:
Complete the Pre-Checks as same as method 1:
Agent Deployment Steps Below:
1. In Cloud Control, from the Setup
menu, select Add Target, and then click Add Target Manually
2. On Next Window select Add Host
Target and click Add Host.
3. On Next Window Add the Hostname
and add the platform name where u are going to install the agent. And click
Next
4. Create the Directory for Agent Base in the
server level.
5. On Next Window select the
Deployment type as Clone existing agent and select the existing agent in the
select target box and inputs for the installation base directory, installation
directory, credentials and leave the sudo and port details as it is (default
value) and click Next.
Basically this clone agent install method is used when we need to
install the agent home in new server with patches were need to apply as same as
different server, and also if agent s/w is not available in repository, At that
time also we can use this method to deploy the fresh agent.
6. On Next Window review the details
and click the Deploy Agent button.
7. On Next Window you can see the copy
of agent software image from source to target server, it will copy the agent
home from the source to target with patches where it is applied in the source
home too.
8. On Next Window you can see the
Installation Progress and pre-checks
9. On Next Window click the continue
button for all hosts as highlighted and ignore the root.sh warnings it need to
take care by manually.
10.
On Next Window We can see the Agent Deployment completed
successfully and click done and run the root.sh script manually in the server.
11.
We have to run the root.sh script as root user as below to
complete the agent installation.
12.
We can cross check the agent through OEM and server level as per
below screen shots.
13.
And also add oratab entry for the agent.
